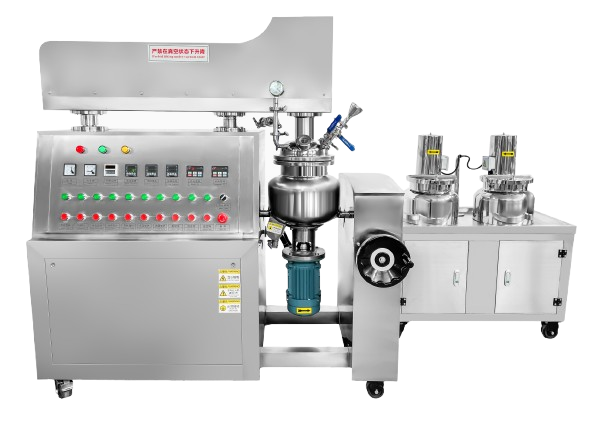

ZA Lab Vacuum Homogenizer

ZA Lab Vacuum Homogenizer Mixer alternatively referred to as a lifting-Type small laboratory vacuum homogenizer, is a compact integrated vacuum mixing system developed by CYJX.

Working volume:5-30litre
A flexible lifting structure for easy feeding, cleaning and maintenance
Equipped with lower homogenizer and tilting discharging method

Get A Quote Tech Specs

Key Features

Working volume: 5-30Liter.
Suitable for the cosmetic products of 10000-100000cps viscosity.
Homogenization: Adopts bottom entry internal homogenizer or the homogenizer with pipes for external emulsification and homogenization; also functions as a transfer pump for discharging finished products.
Durability: The jacket can be used for cooling, but if the jacket uses heat transfer oil as the heating medium, the jacket cannot be used for cooling.
Mixing system: Scraper mixing with Teflon scraper blades; customized mixing impellers are available to meet specific process requirements.
Speed control: Variable speed for both homogenizer and agitator.
Integrated functions: Combines mixing, dispersing, emulsifying, homogenizing, vacuum, heating and cooling in one unit.

Temperature control: Three layers with jacket (available for steam and electric heating); double temperature probes and controllers for heating.
Vacuum & discharge: Vacuum system to remove air bubbles and transfer ingredients; compressed air to assist cream discharge.
Hygiene & compliance: All contact parts are made of SS316L and mirror polished.
Spray ball: For connecting to customer’s CIP system; complies with cGMP regulations.
Operation & power: User-friendly push buttons control panel or PLC+HMI system.
Power supply: 380V, 50Hz, 3 Phase, or can be adjusted based on your location.

Application

Pharmaceuticals

Ointments, dental composites, syrups and injections.

Learn More

Chemicals

Polyesters, synthetic fibers and shoe creams.

Learn More

Cosmetics

Creams, lotions, waxes, mascaras, gels and toothpastes.

Learn More

Food

Mayonnaise, dressings, jams, butter, margarine and wasabi.

Learn More

Tech Specs

Working capacity (L)	Agitator power (kw)	Speed (rpm)	Homogenizer power (kw)	Speed (rpm)	Oil/Water tank (L)	Agitator power (kw)	Speed (rpm)
5	0.55	0-63	1.1	0-3500	2.7	0.025	1440
10	0.75		2.2		4/8	0.37
20	0.75		2.2		8/18	0.37
30	1.1		3		10/25	0.55

Download Printable Version

Mixer Option

Weighing Module

Domestic weighing solution or Mettler Toledo weighing solution.

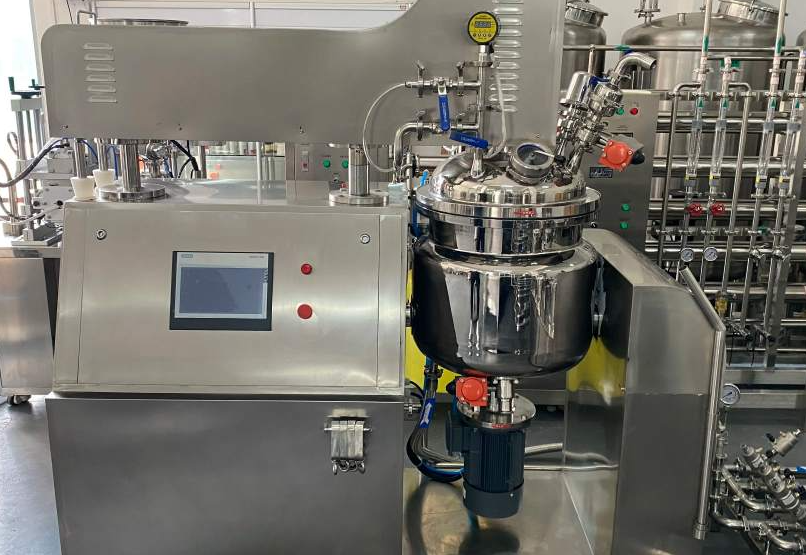

PLC + HMI

Control cabinet upgraded to PLC+HMI intelligent operating system, supporting intelligent interaction and linkage with chiller, steam boiler and rotor pump.
Electronic Pressure Gauge

Higher accuracy than conventional pressure gauges.

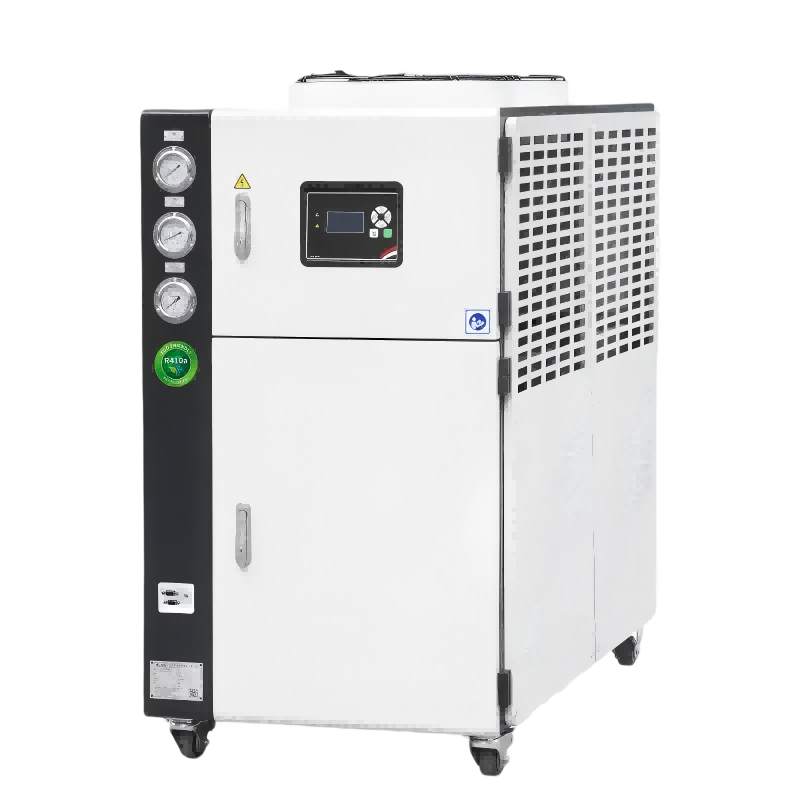

Chiller

Jacket connectable to external chiller system, linkable with PLC system.

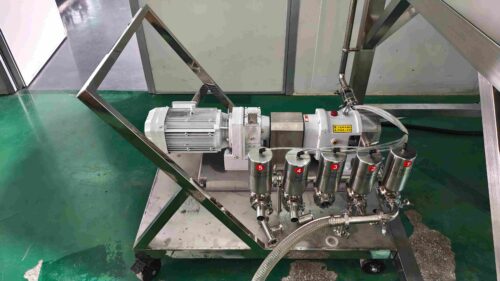

Rotor Pump

Rotor pump can be installed at the discharge port for material output.
Heating System

Electric heating or steam heating available.
